The most innovative panoramic

The most innovative panoramic

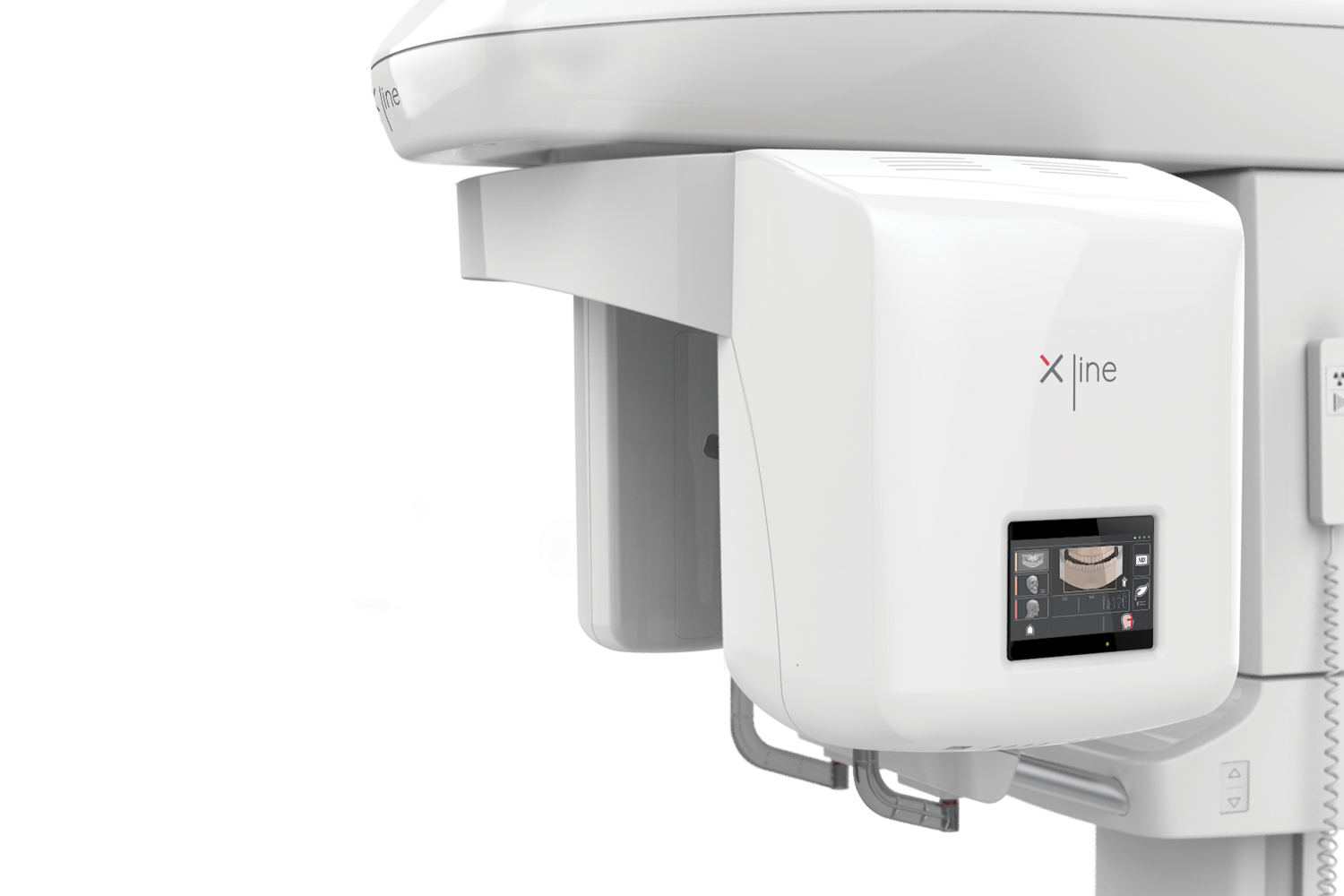

Stellaris 2D is the most innovative panoramic of the Xline portfolio. Based on the well-known and reliable Stellaris 3D platform, it offers a brilliant new image quality, thanks to the new dynamic image focusing technique.

  • Ready for Every Diagnosis
  • Compact and Modern
  • Power of touch
  • fda
  • ce
  • eu mdr
Download BrochureFind a distributor

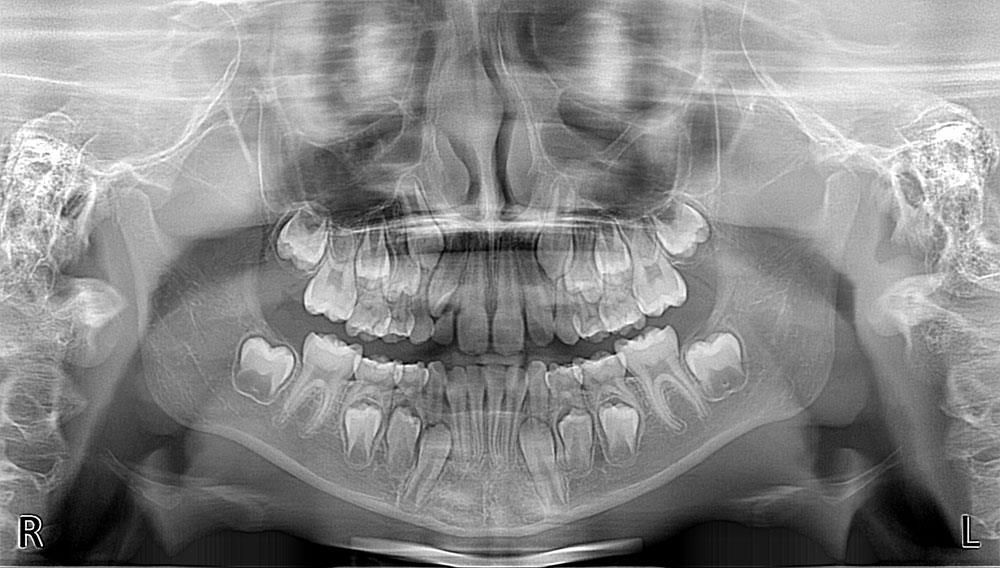

Ready for Every Diagnosis

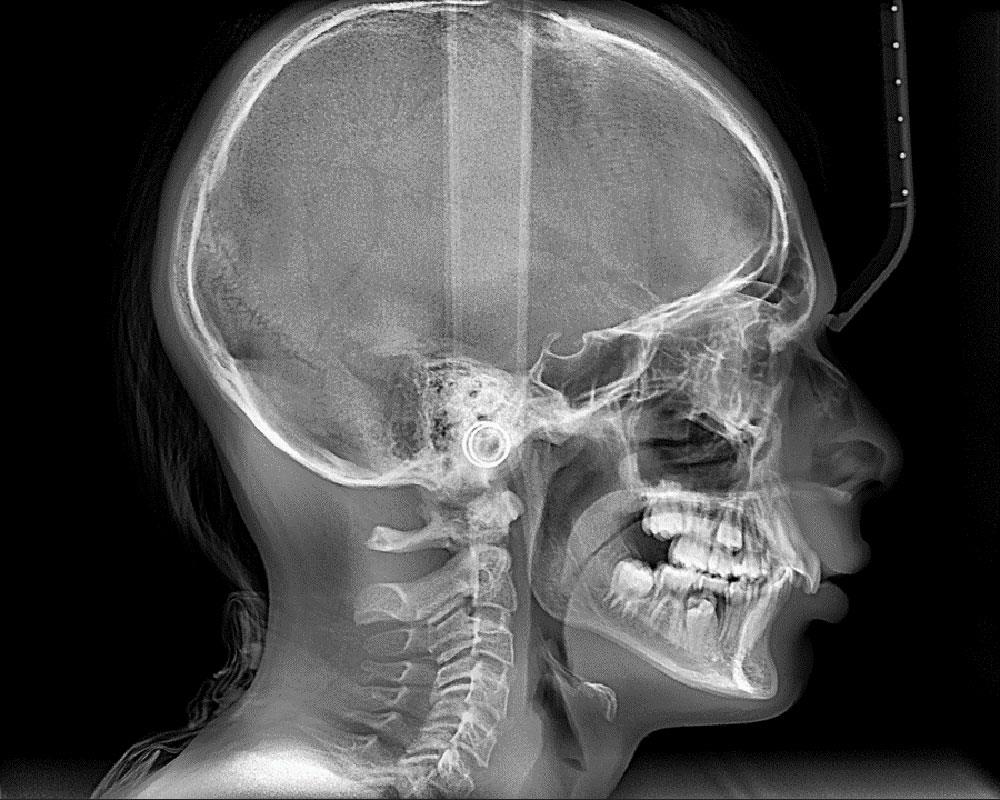

Stellaris 2D covers a variety of diagnostics in 2Dand Ceph with one shot ceph images and programs for panoramic examinations.

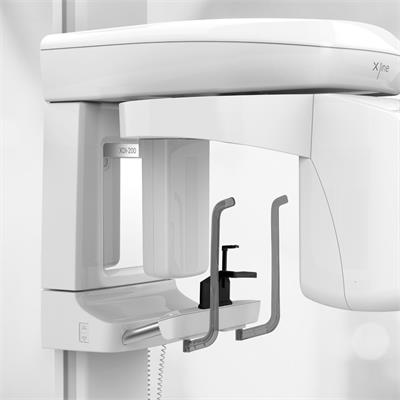

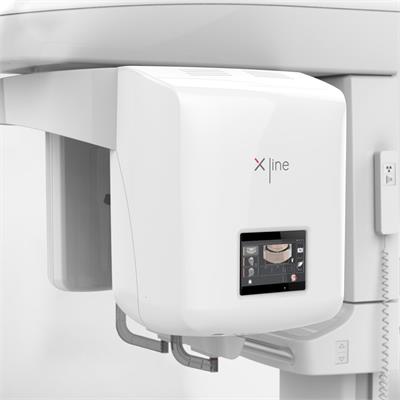

Compact and Modern

The minimalist, elegant, space-saving design allows installation of Stellaris 3D in areas where conventional devices would not fit.

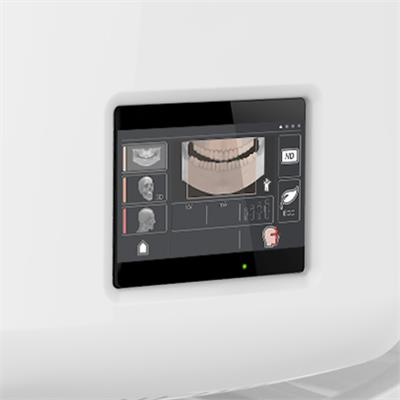

Power
of Touch

Control of the system is available from your PC screen as well as on the unit's touchscreen, allowing straightforward program selection with hints for correct positioning.

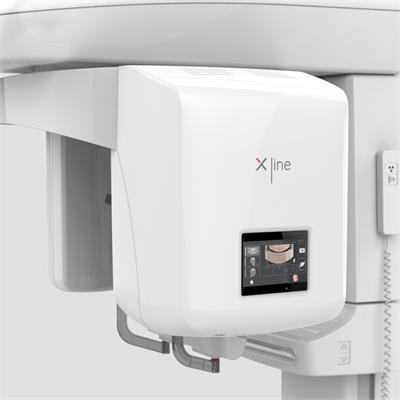

Dedicated linear sensor

Dedicated linear sensor for the best image quality.

High Definition and ECO Programs

Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

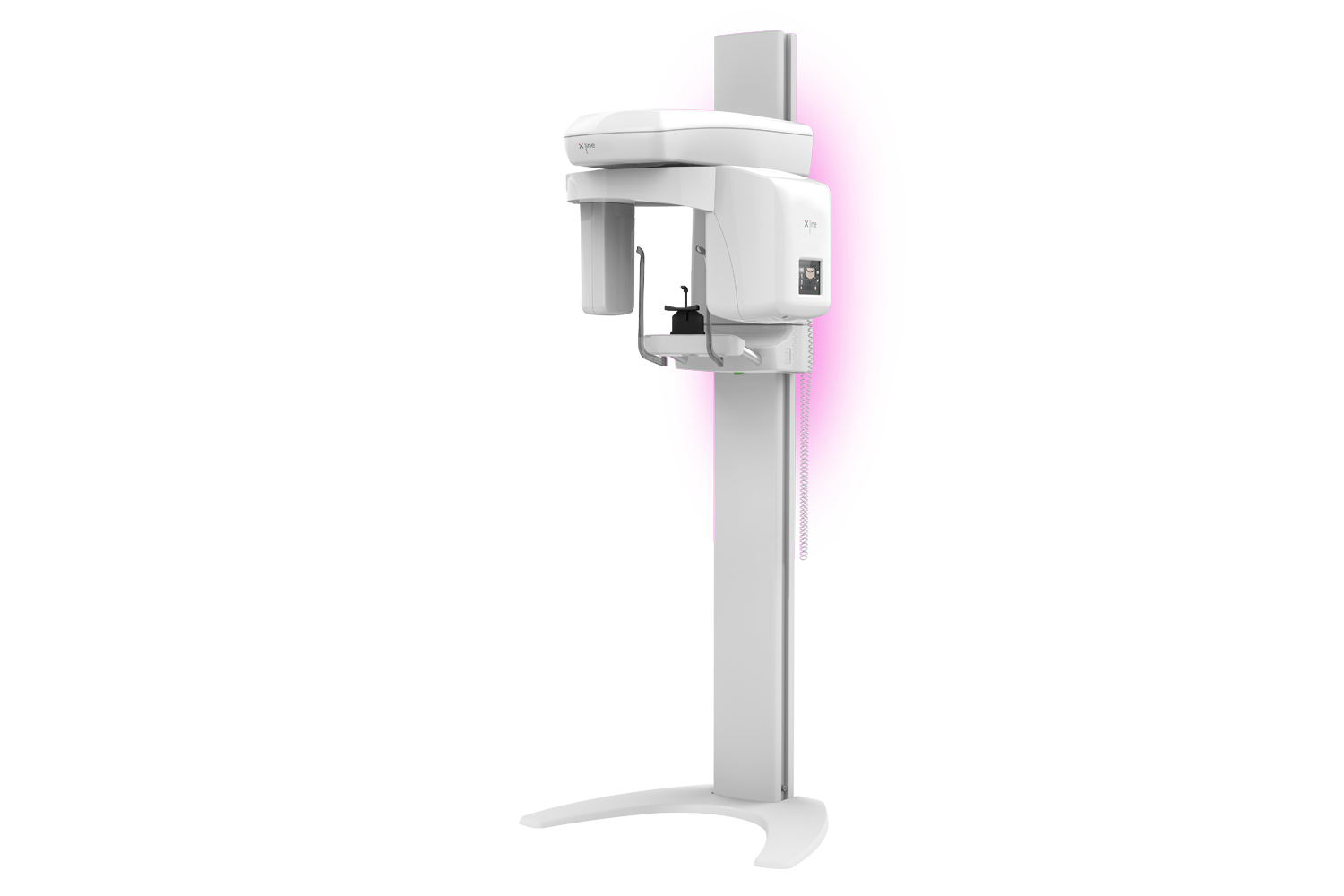

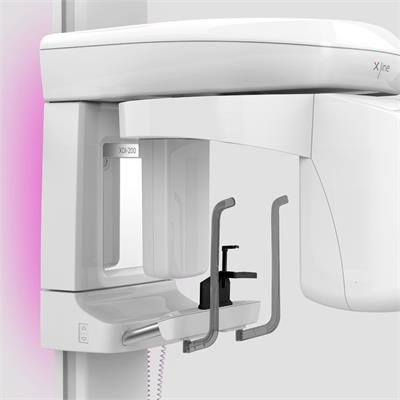

Ambient Glow

Ambient lighting creates a comfortable atmosphere for the patient and allows to monitor the unit status from a distance.

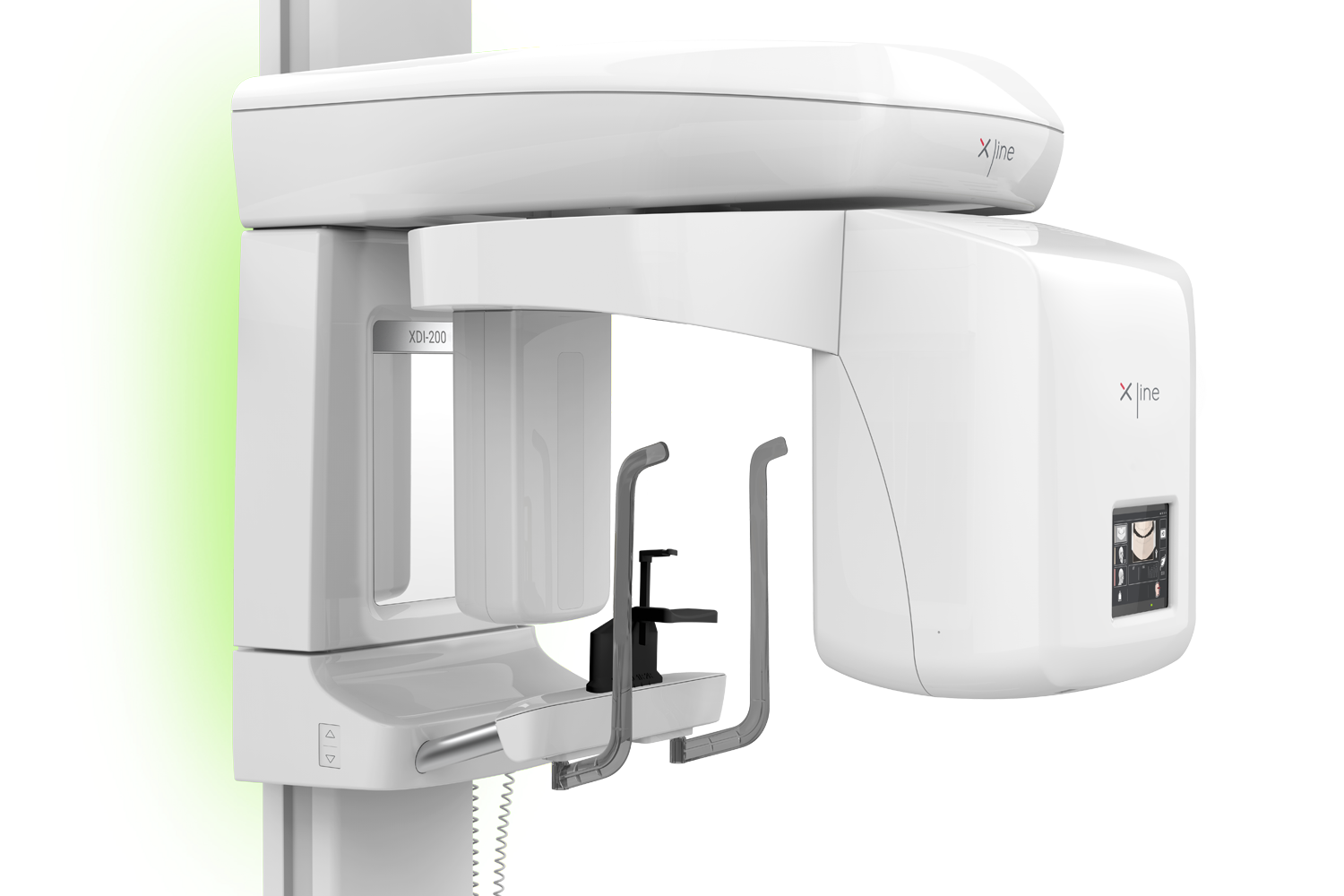

Advanced Technology

Latest sensor design, technology and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Sensor Technology

CMOS Flat Panel, CSI Flat Panel for ceph

Pixel size

100 µm

Focal Spot

0.5 (IEC 336 / 1997)

Tube Voltage

60 - 86 kV

Tube Current

2.5 - 10 mA

Exposure time 2D

4.6 - 14.2 seconds

Exposure Time Ceph One-Shot

0,5s adult, 0,2s child

Ceph Image Size

240x300 mm

Weight

109kg without ceph, 137kg with ceph

Panoramic Programs

in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.

Ceph Programs

LL 30x24, LL18x24, AP, PA, Carpus

Patient Sizes

Child, teenager, woman, man

Software

OrisWin DG Suite

Features

Panoramic, panoramic upgradable to 3D and ceph, panoramic with

ceph upgradable to 3D.

Footprint

140x110 cm without CEPH, 240 x 110cm with CEPH

Patient position

Standing or sitting

Wheelchair acessible

Yes

Tecnichal draw
