Superior CBCT for Every Indication

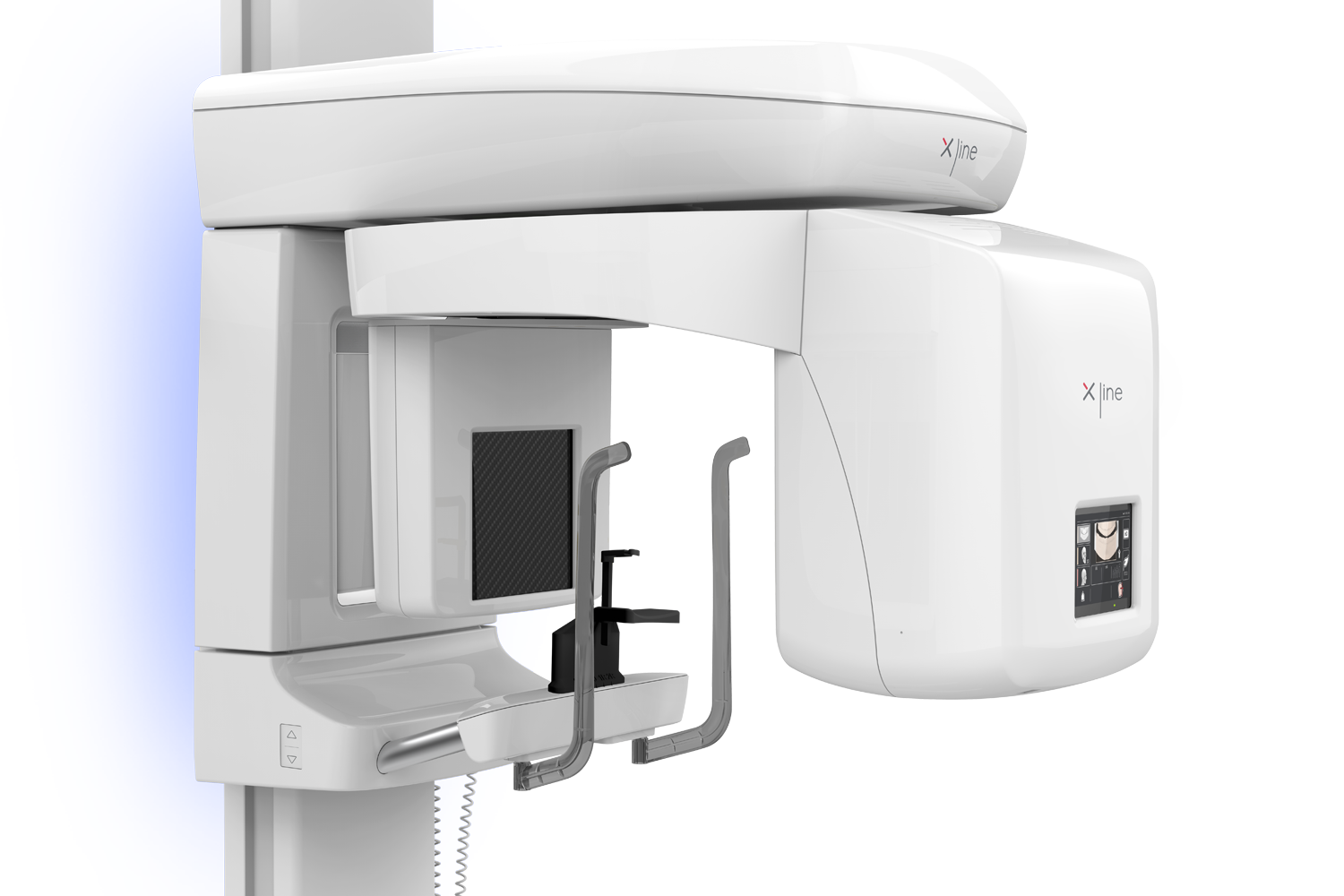

Stellaris 3D
& 3D Ceph

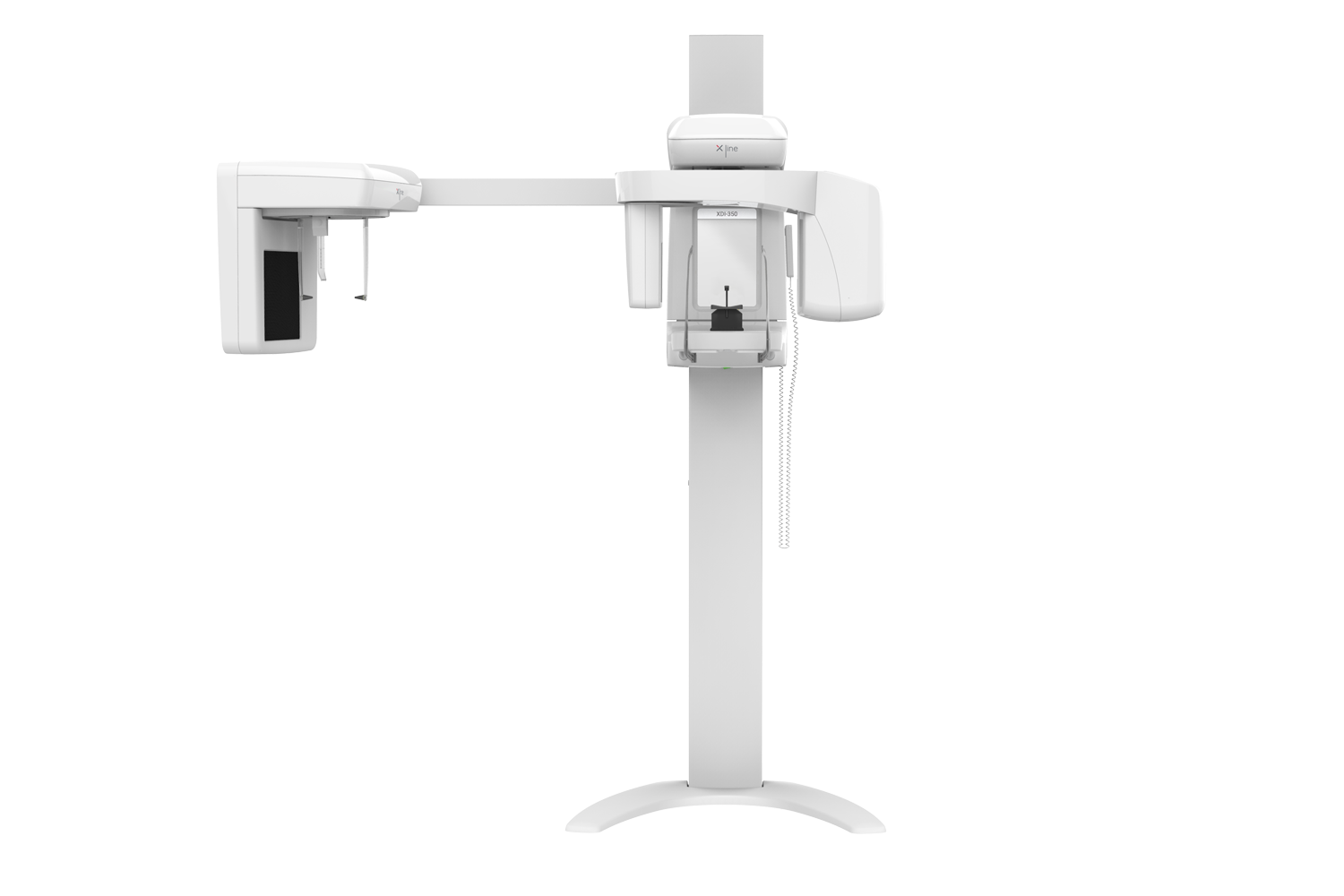

Stellaris 3D is a complete and compact fully upgradeable 3D CBCT, Panoramic and Cephalometric system, which covers an entire range of applications – from endodontics, periodontology, surgery, implantology to orthodontics – everything you need in your daily practice.

  • fda
  • ce
  • eu mdr
Download BrochureFind a distributor

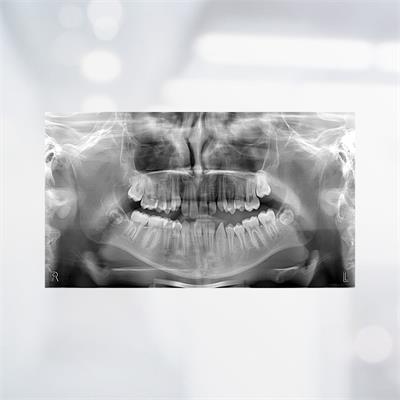

Ready for Every Diagnosis

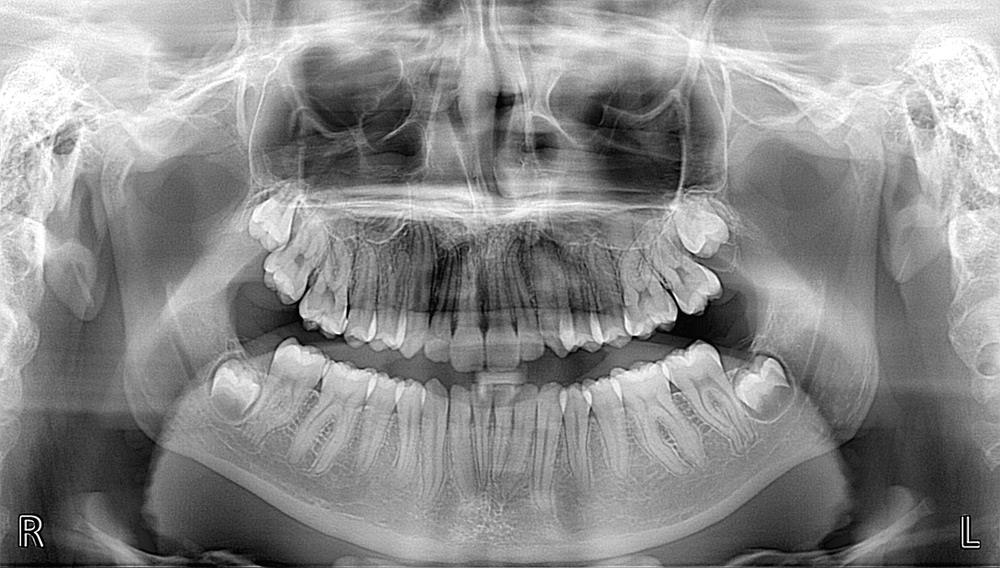

Stellaris 3D covers a variety of diagnostics in 2D, 3D and Ceph with multiple fields of view, programs for panoramic examinations and cephalometric scans.

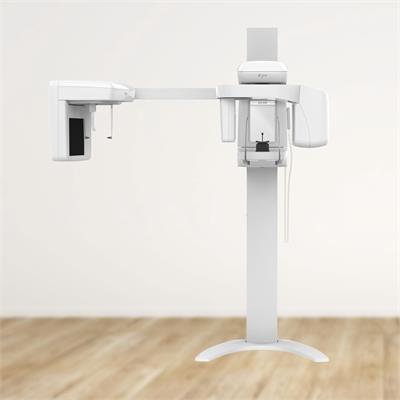

Compact and Modern

The minimalist, elegant, space-saving design allows installation of Stellaris 3D in areas where conventional devices would not fit.

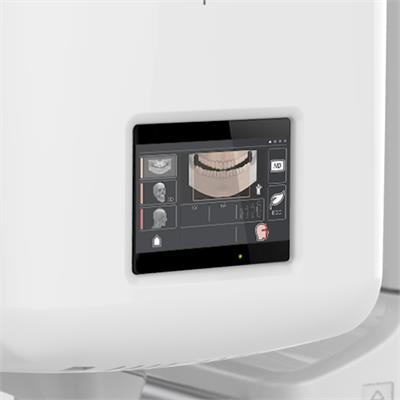

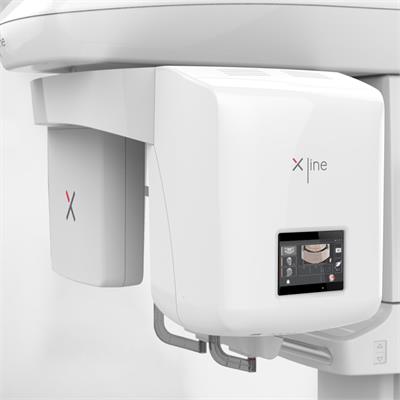

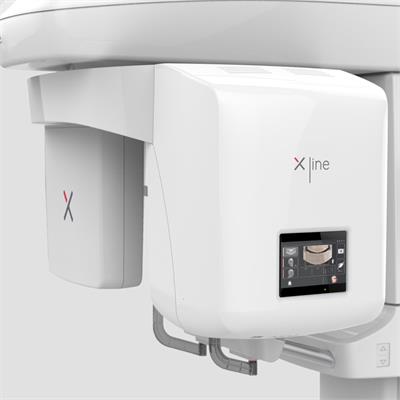

Power
of Touch

Control of the system is available from your PC screen as well as on the unit's touchscreen, allowing straightforward program selection with hints for correct positioning.

8 different FOV's for Your Daily Needs

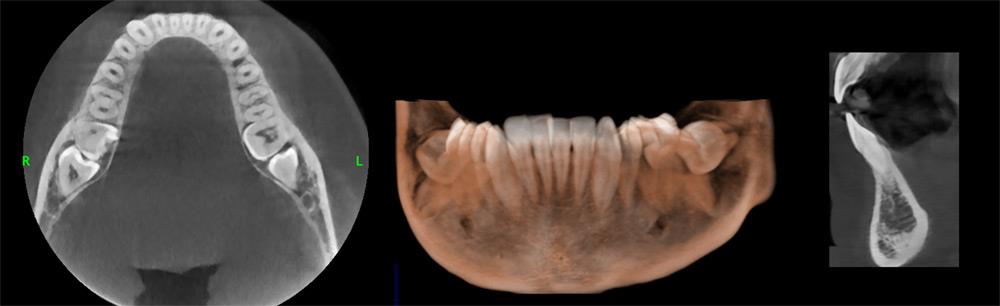

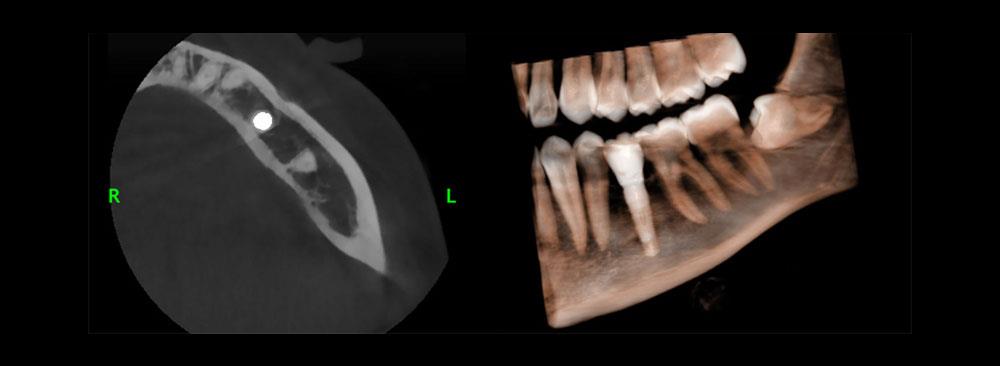

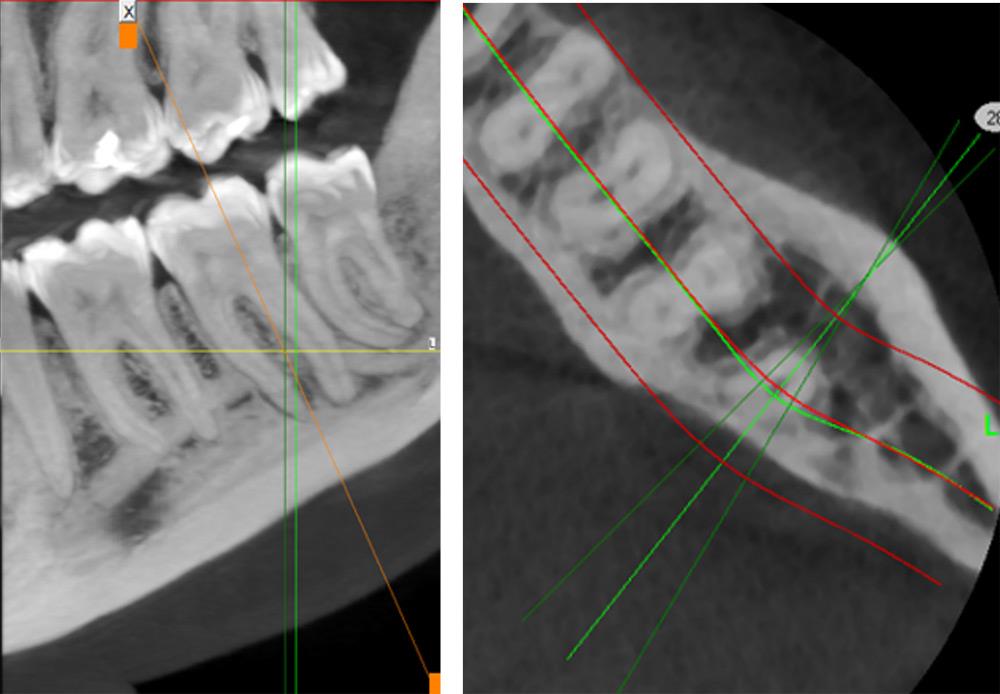

Stellaris 3D covers a complete range of CBCT programs for various applications – from endodontics through surgery and implantology to bone augmentations.

High Definition and ECO Programs

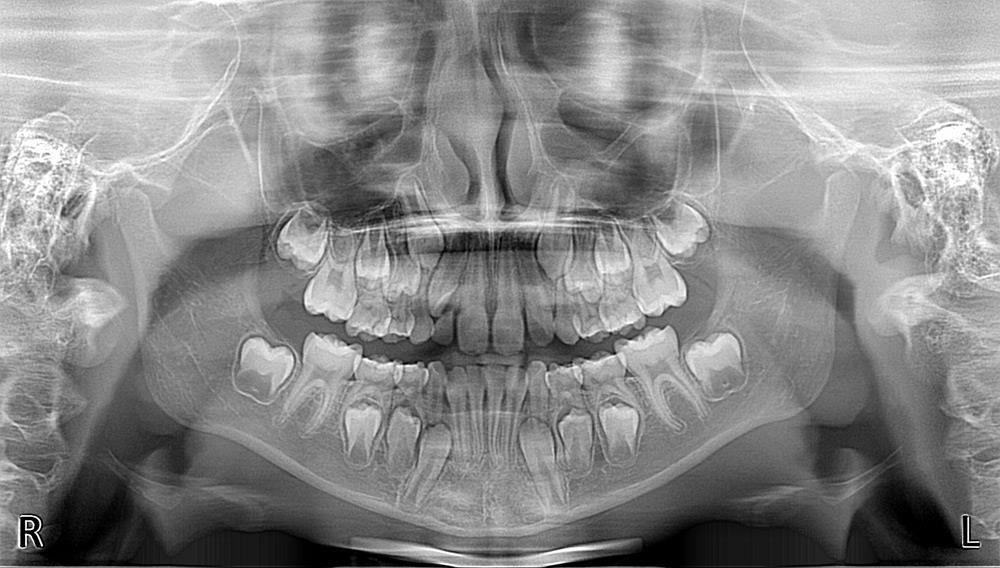

Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.

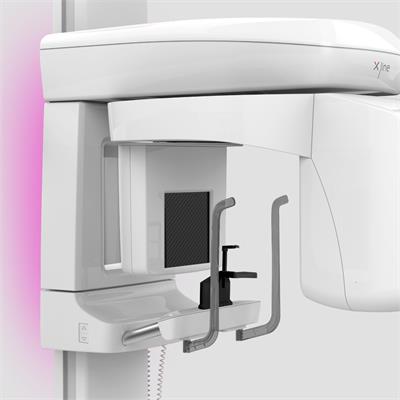

Ambient Glow

Ambient lighting creates a comfortable atmosphere for the patient and allows to monitor the unit status from a distance.

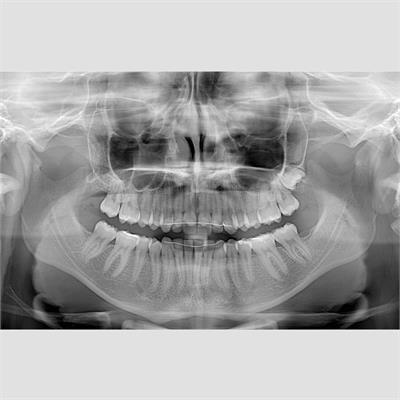

Advanced Technology

Latest sensor design, technology and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.

Sensor TechnologyCMOS Flat Panel, CSI Flat Panel for ceph
Pixel size100 µm
Voxel Size80 µm
Focal Spot0.5 (IEC 336 / 1997)
Tube Voltage60 - 86 kV
Tube Current2.5 - 10 mA
Exposure time 2D4.6 - 14.2 seconds
Exposure time 3D5 - 16.9 seconds
Exposure Time Ceph One-Shot0,5s adult, 0,2s child
3D Active Sensor Area160x160 mm
Ceph Image Size240x300 mm
Volume size 3D5x6,5, 7x6,5, 6x10, 8x6,5, 8x10, 11x6,5, 11x10
Weight109kg without ceph, 137kg with ceph
Panoramic Programsin total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth.
3D Programsin total 27: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left.

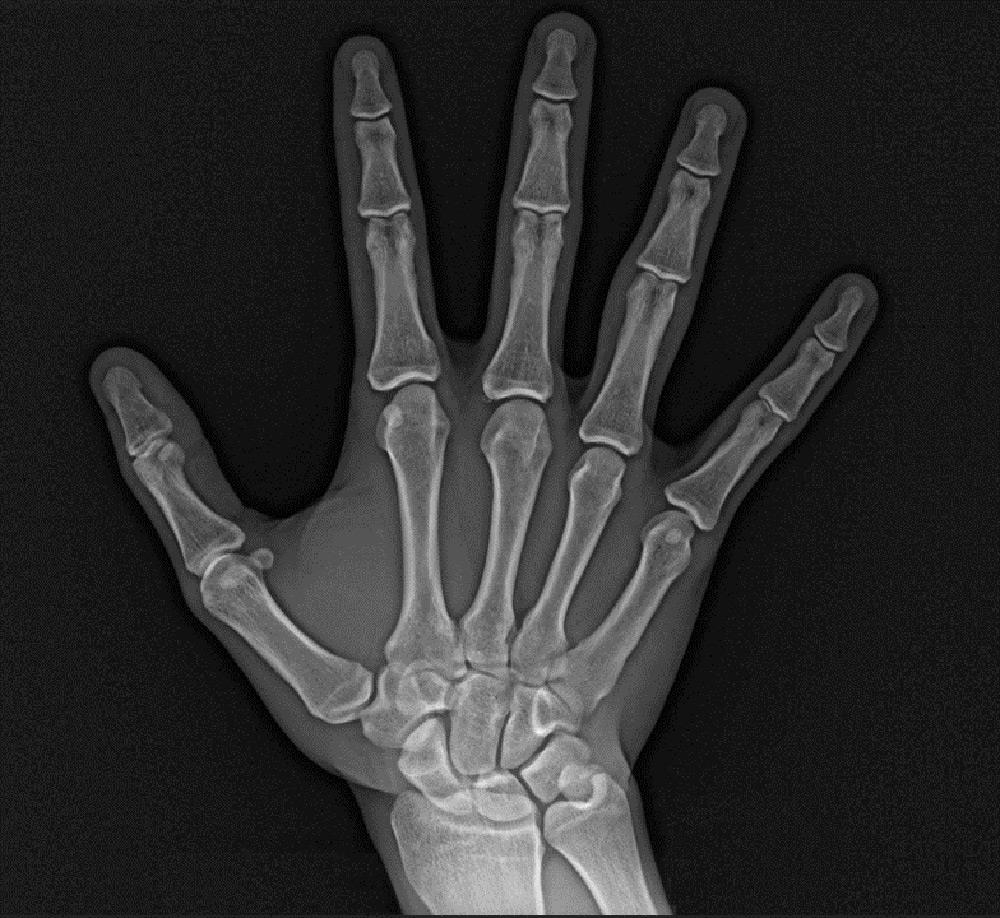

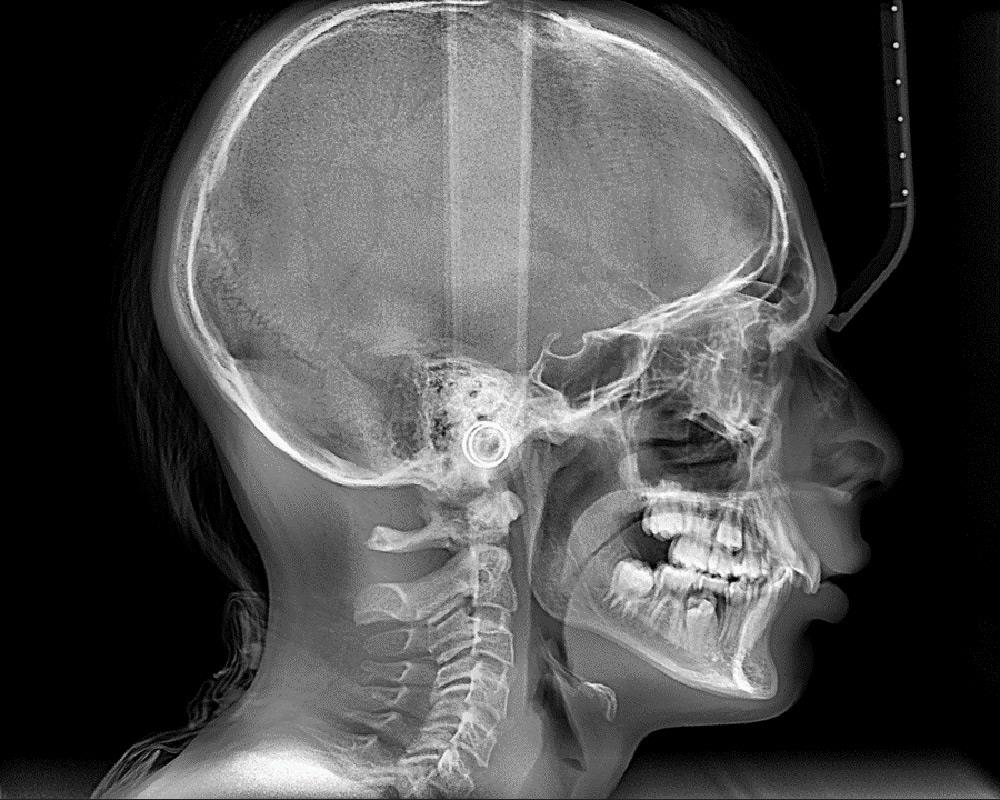

Ceph ProgramsLL 30x24, LL18x24, AP, PA, Carpus
Patient SizesChild, teenager, woman, man
SoftwareStellaris PRO
Features3 in 1 or 2 in 1 upgradeable to 3 in 1
Footprint140x110 cm without CEPH, 240 x 110cm with CEPH
Patient positionStanding or sitting
Wheelchair acessibleYes

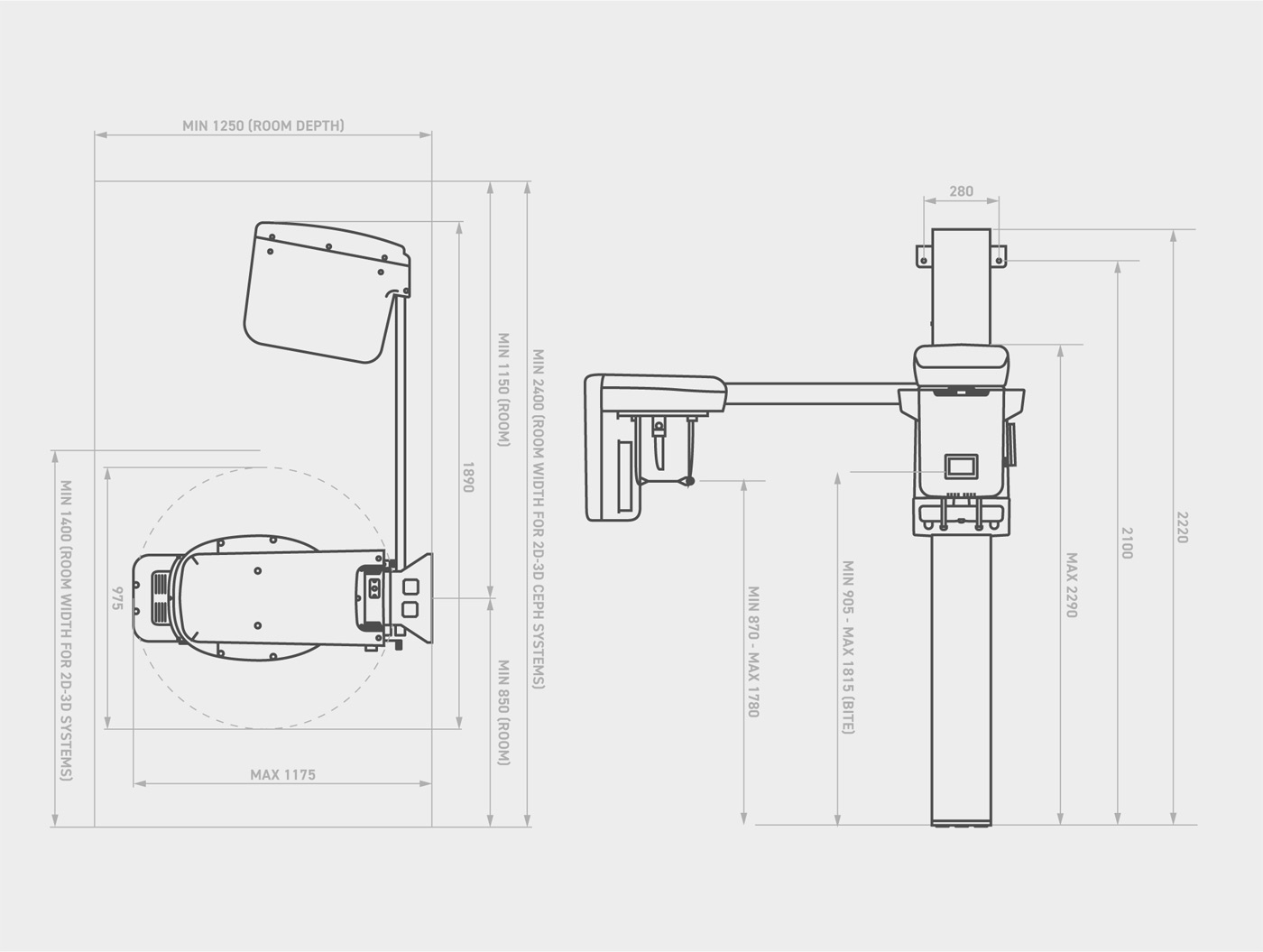

Tecnichal draw
