XDC

High Frequency generator for your needs

High Frequency generator for your needs

This state of the art DC device with its modern design will fit perfectly into your dental studio and has the flexibility to give you excellent image quality in all your clinical cases. Its technology is fulfilling the highest standards for low dose digital imaging and with three presets, for all receptor types, is universally usable for digital sensors, phosphor plates or films.

  • fda
  • ce
  • eu mdr
Download BrochureFind a distributor

Advanced technology

State of the art digital DC (high frequency) technology and comprehensive program presets ensure high sharpness and excellent quality of your images.

Integration flexibility

Different configuration possibilities for comfortable and reliable positioning.

Excellent image quality

Finest focal spot of 0.4 for excellent image quality. Perfect combined with our intraoral sensor StarX PRO.

Precise setting for all exposures

Obtain the most appropriate exposure setting by selecting among 2 patient sizes, 9 programs and 3 detectors. Optional DAP available.

The contrast you prefer

Get the image information you are looking for. Select the voltage 60 kV for perio application to reveal statement of ligaments or 70 kV for endo to see more hard tissue contours.

Integration flexibility

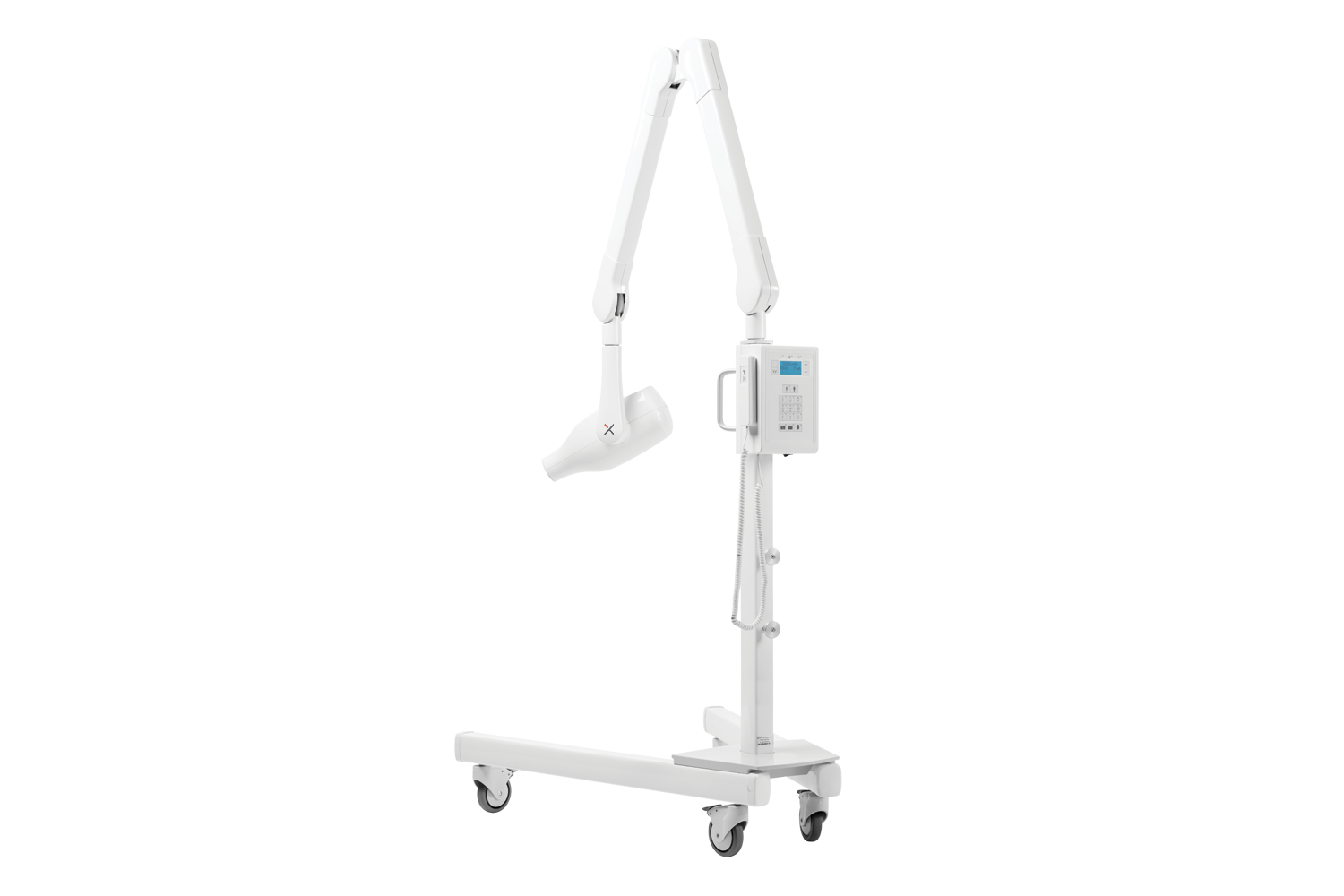

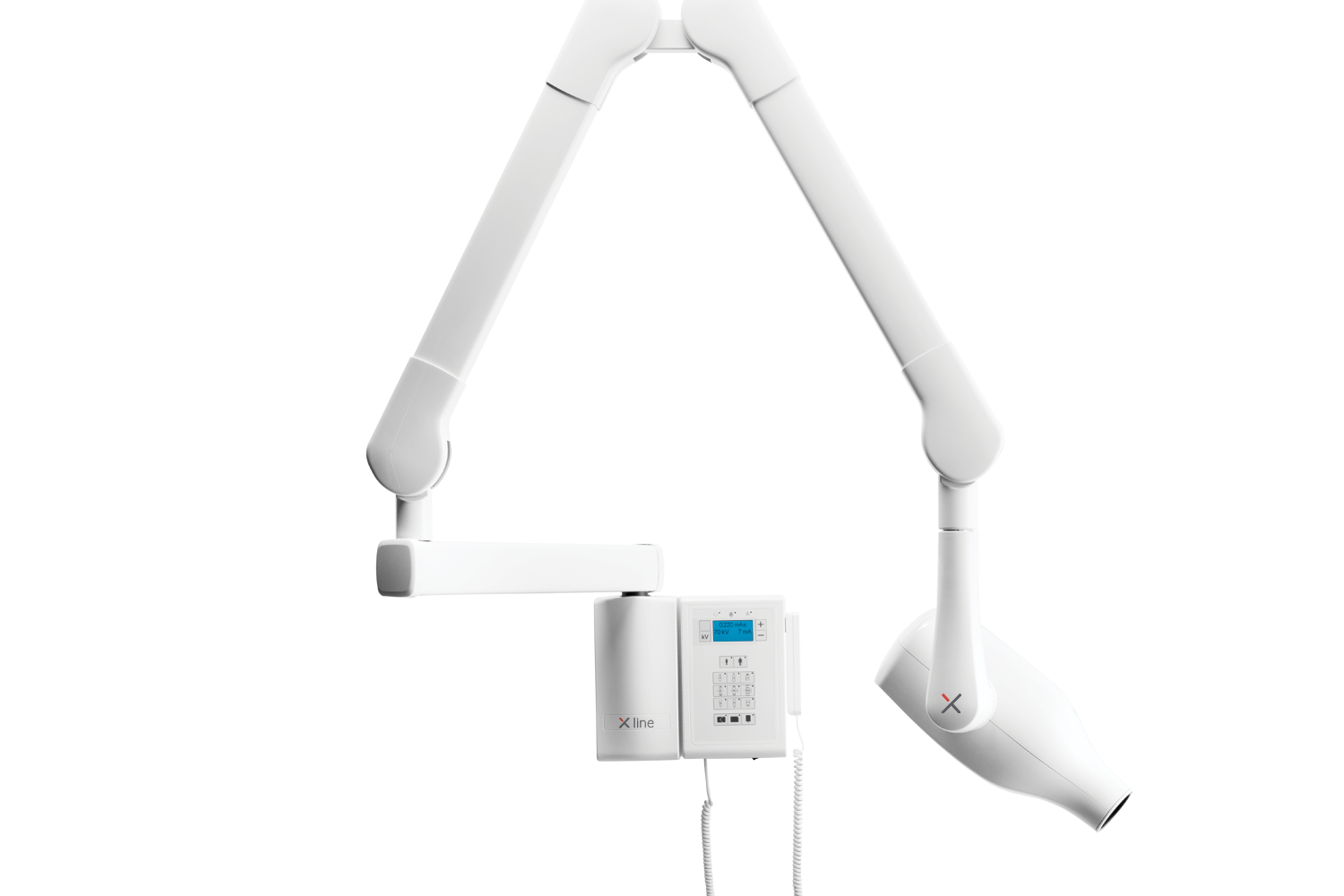

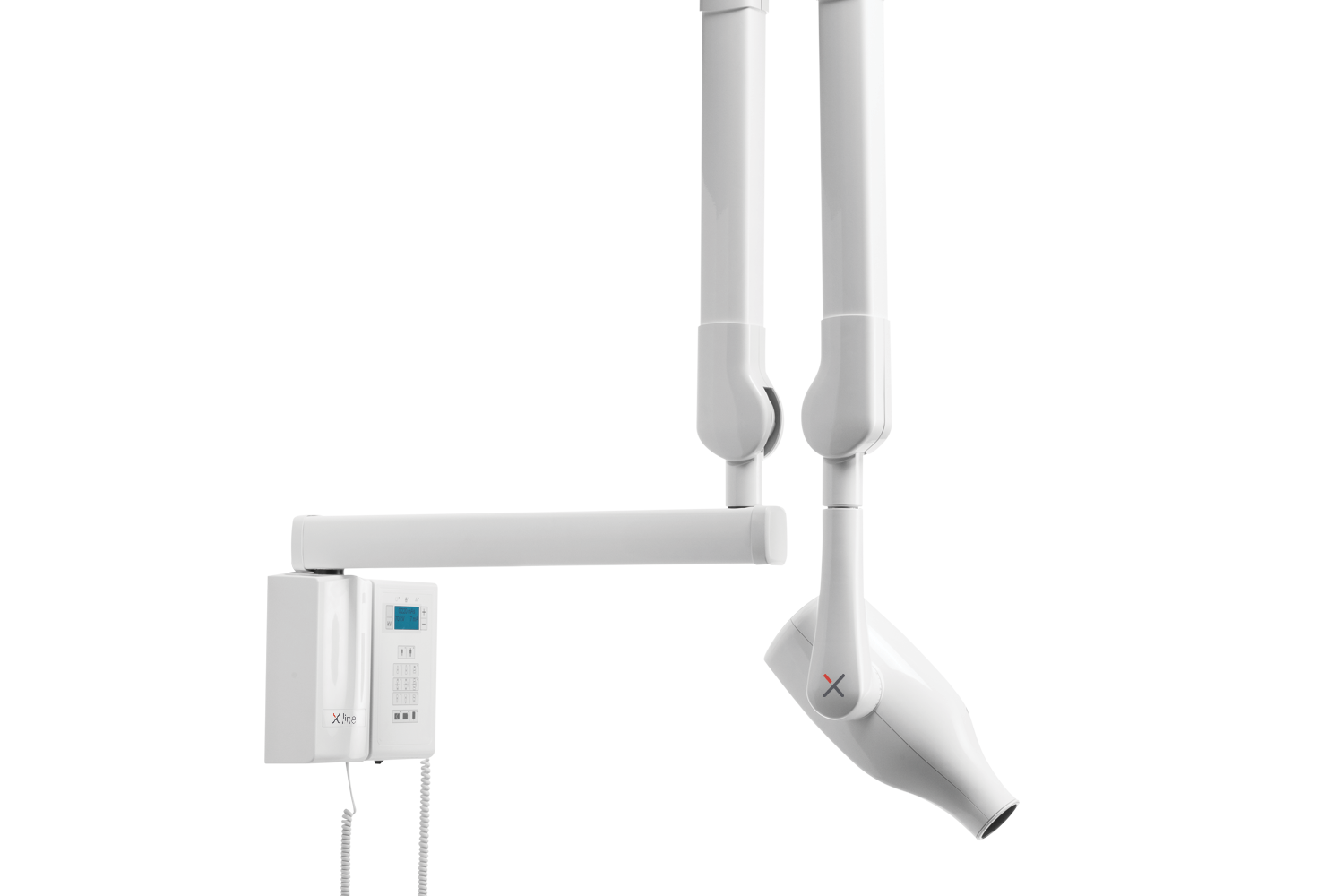

Available as a mobile and wall-mounted version. Four different extension arm lengths and possibility to place the timer remotely, for even greater installation freedom and ease of use.

Ergonomic positioning

Stable, easy to adjust arm ensures accurate and reliable positioning every time.

Options

  • Choose among 4 different extension arm lengths to make your intraoral unit perfectly fit into your dental studio. You can select standard 30 cm, 60 cm or 80 cm and optional 100 cm arm.
  • Xline’s rectangular beam limiting device (2x3cm or 3x4cm) permits significant dose reduction.
  • The mobile version is the ideal choice for dental clinics looking for maximum operational flexibility.
  • 20/21 cm standard or 30 cm optional collimator available.
  • With a cable length of 10 m, the remote hand switch is easy to mount where needed.
Generator Direct Current (DC)
Focal Spot 0.4 (IEC 336/1997)
Tube voltage, tube current 60/70 kV (selectable), 7 mA
Line voltage 100/230V, 50/60 Hz
Focus - skin distance Standard 20cm (optional 30cm)
Exposure time 0,01 - 3.2 s / 0,07 - 22,4 mAs
Patient Sizes Adult, Child
Number of anatomical regions 9

Tecnichal draw
