XDI-150

The ultimate DC Intraoral Generator

The ultimate DC Intraoral Generator

The modern and flexible solution you’ve always dreamed of for your clinic.

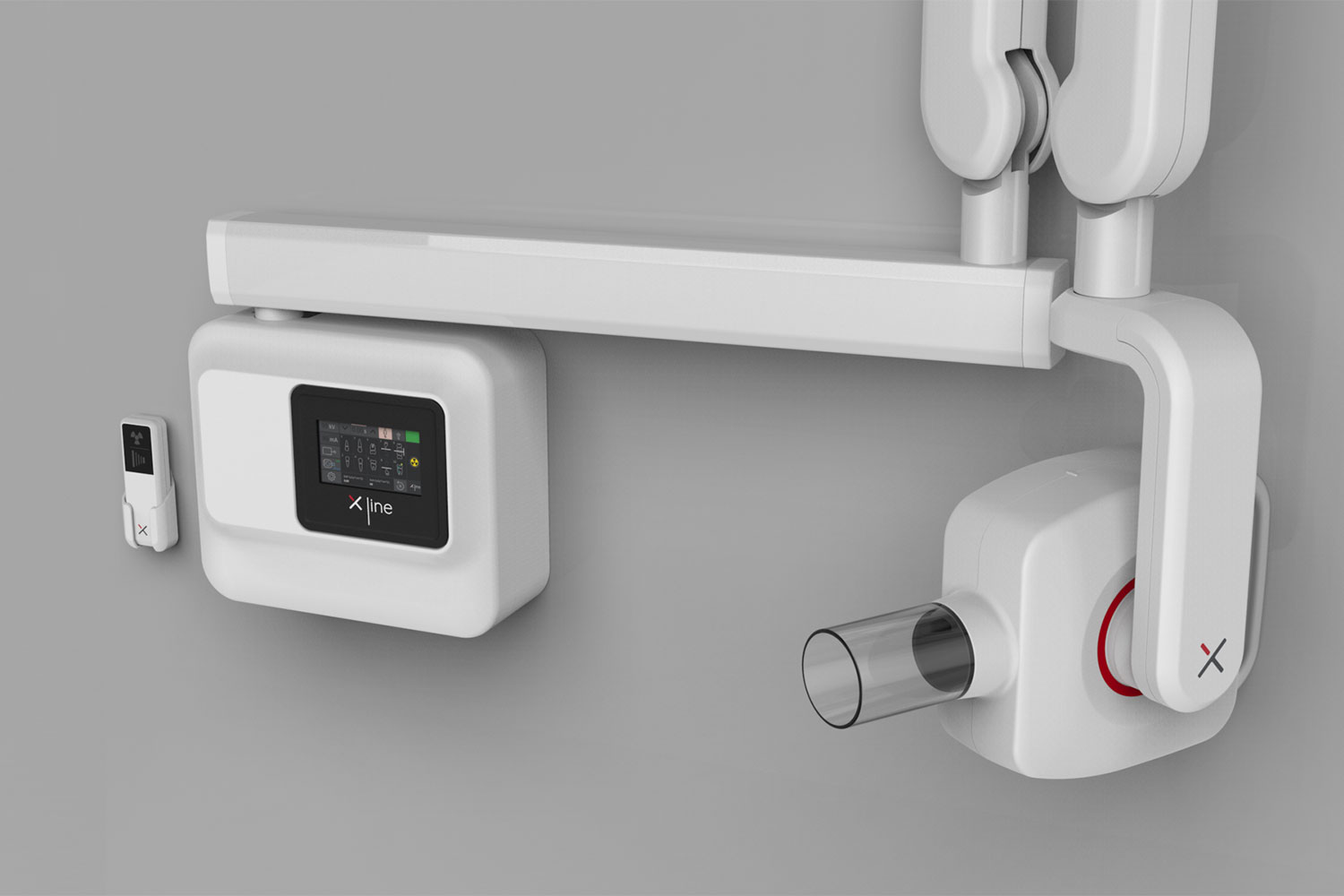

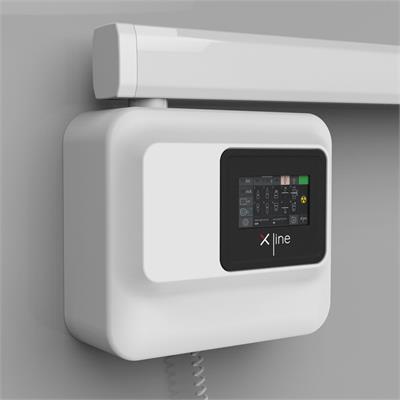

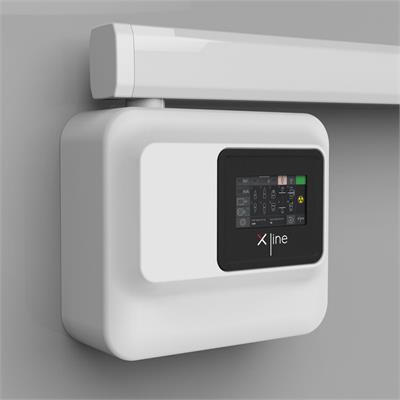

Thanks to the innovative layout concept, XDI-150 perfectly fits into your clinic: wall mounted, mobile or mobile with laptop tray are only three of the multiple possible solutions.

  • fda
  • ce
  • eu mdr
Download BrochureFind a distributor

Innovative

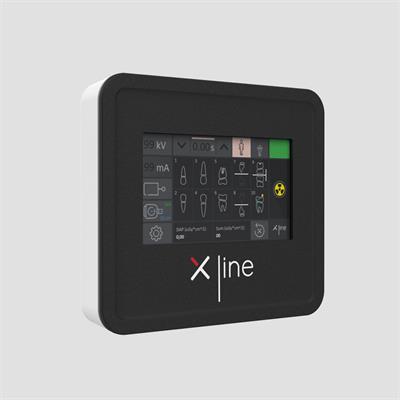

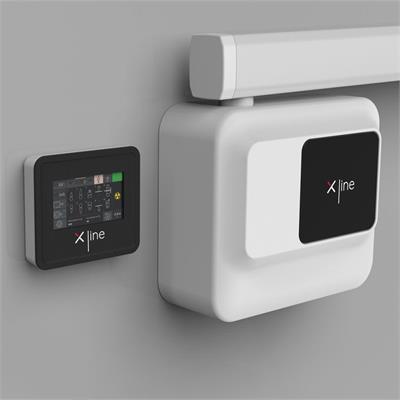

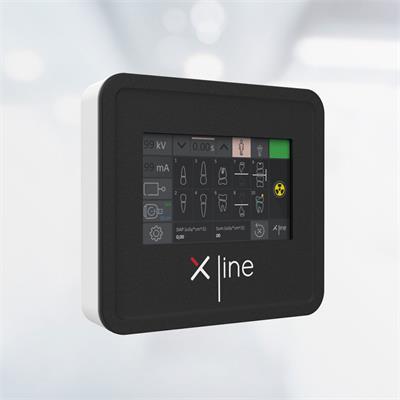

The removable touchscreen can be used as a remote button itself and can be optionally placed outside the x-rays room without the need of the x-rays remote.

Intuitive

The intuitive graphic interface allows a smooth and pleasant workflow.

Wireless

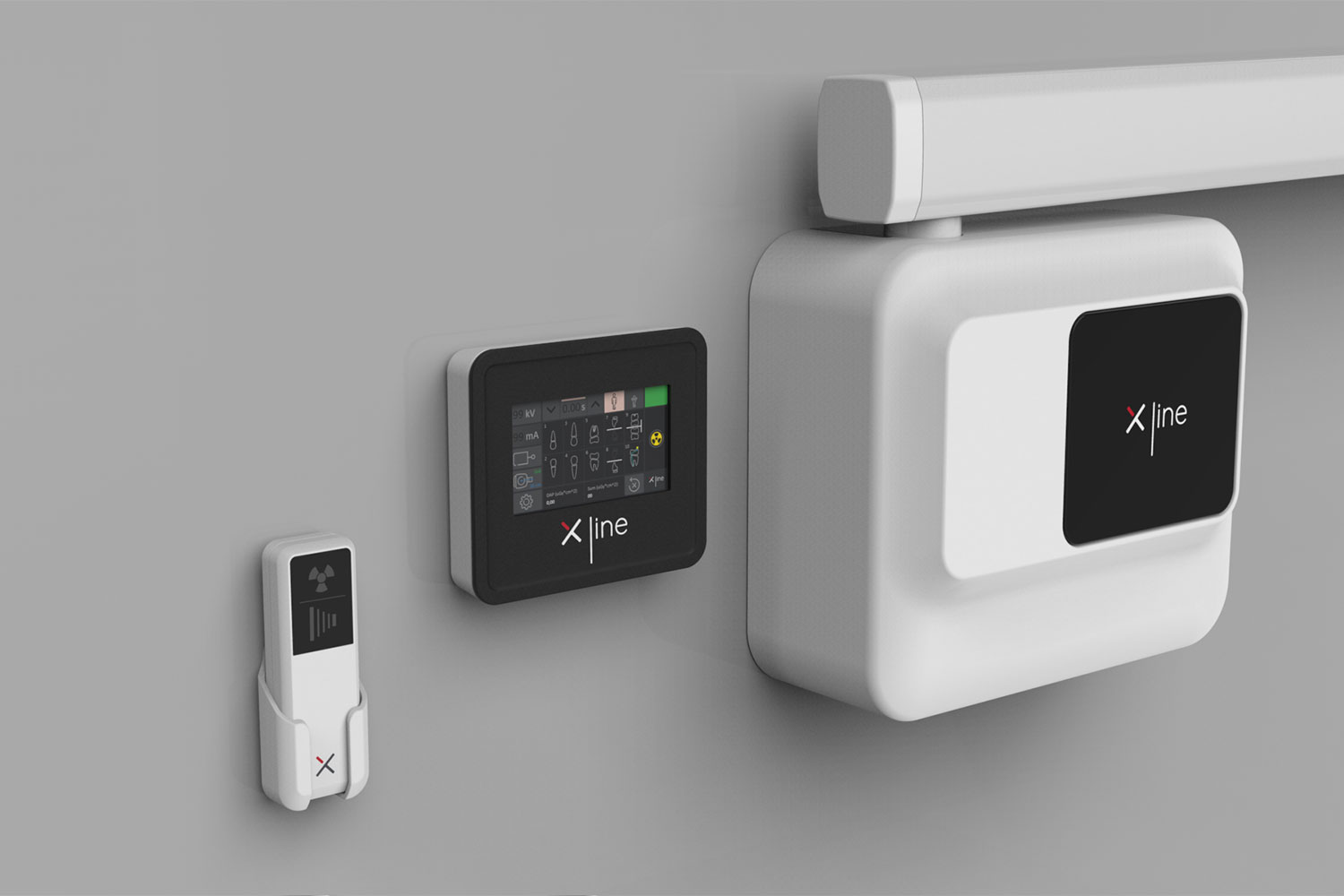

Wireless remote and removable touchscreen for an easy to use, modern and smart solution

Customizable

Select among 10 dedicated programs for every clinical application for the best diagnostic outcome, or customize the exposure parameters for a tailored daily experience.

Stable radiation output

Universal voltage and always stable power output

Ready for the future

Ready for the future: the integrated touchscreen easily accessible by USB keys can be upgraded even after years with new programs and features.

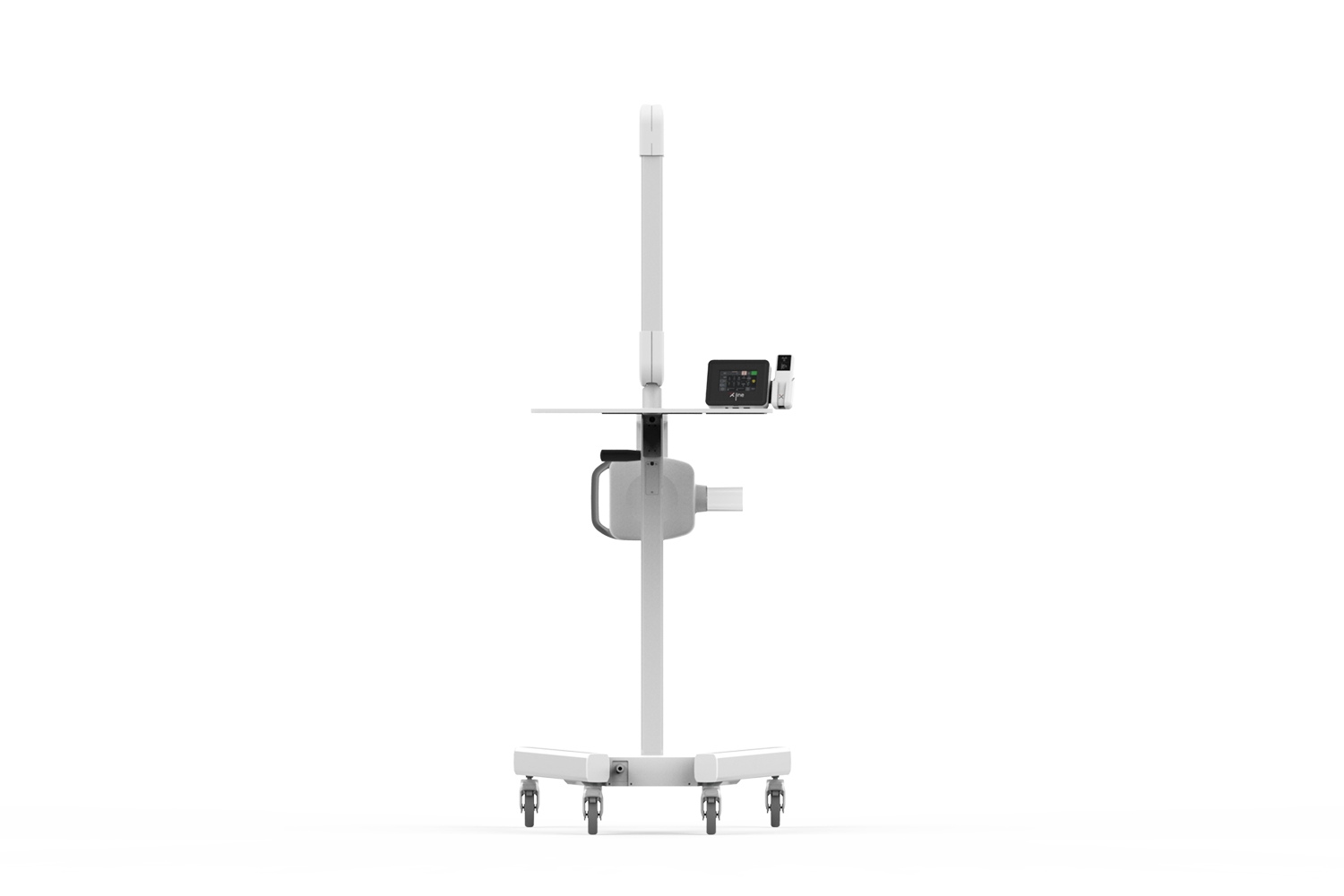

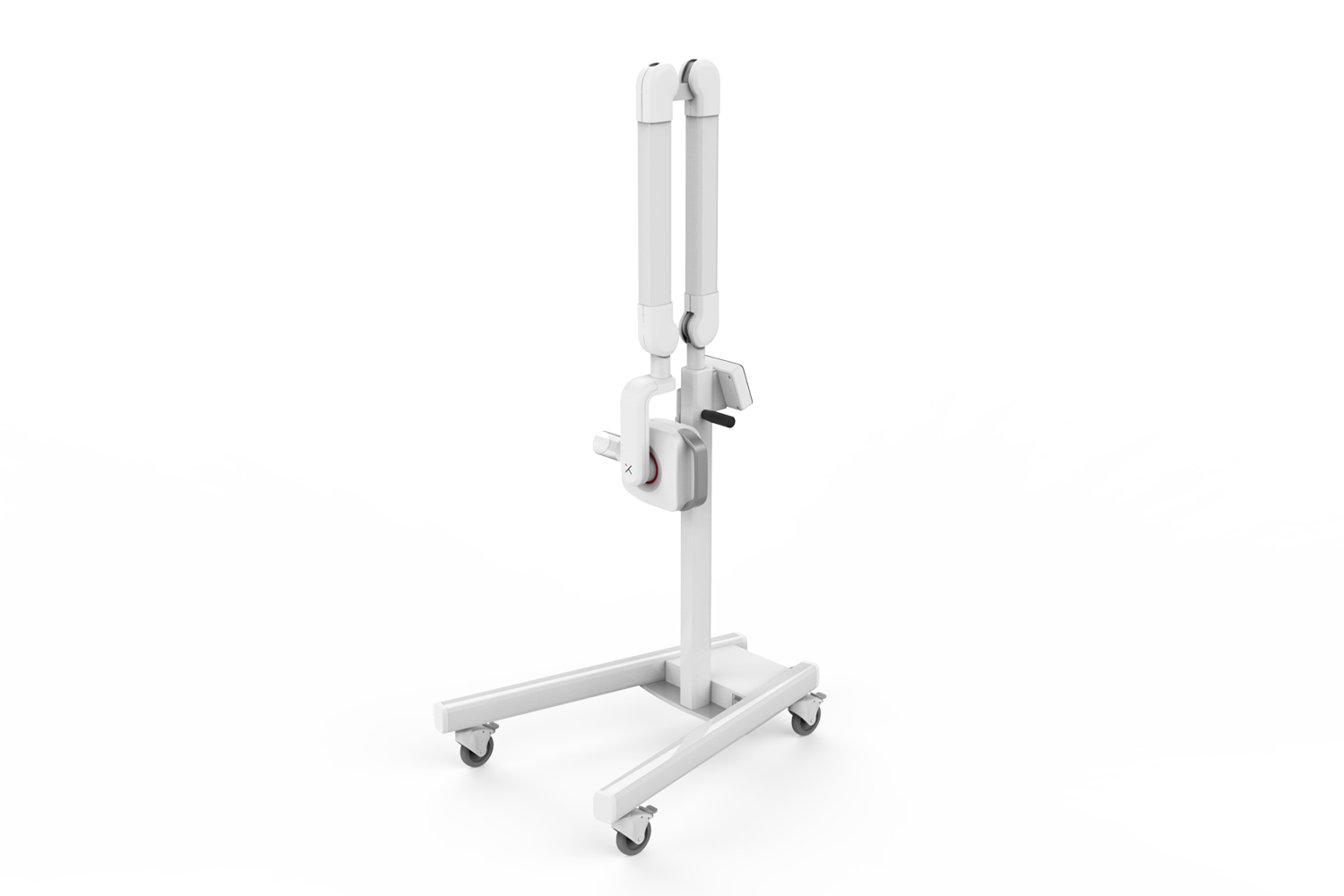

Mobile Version

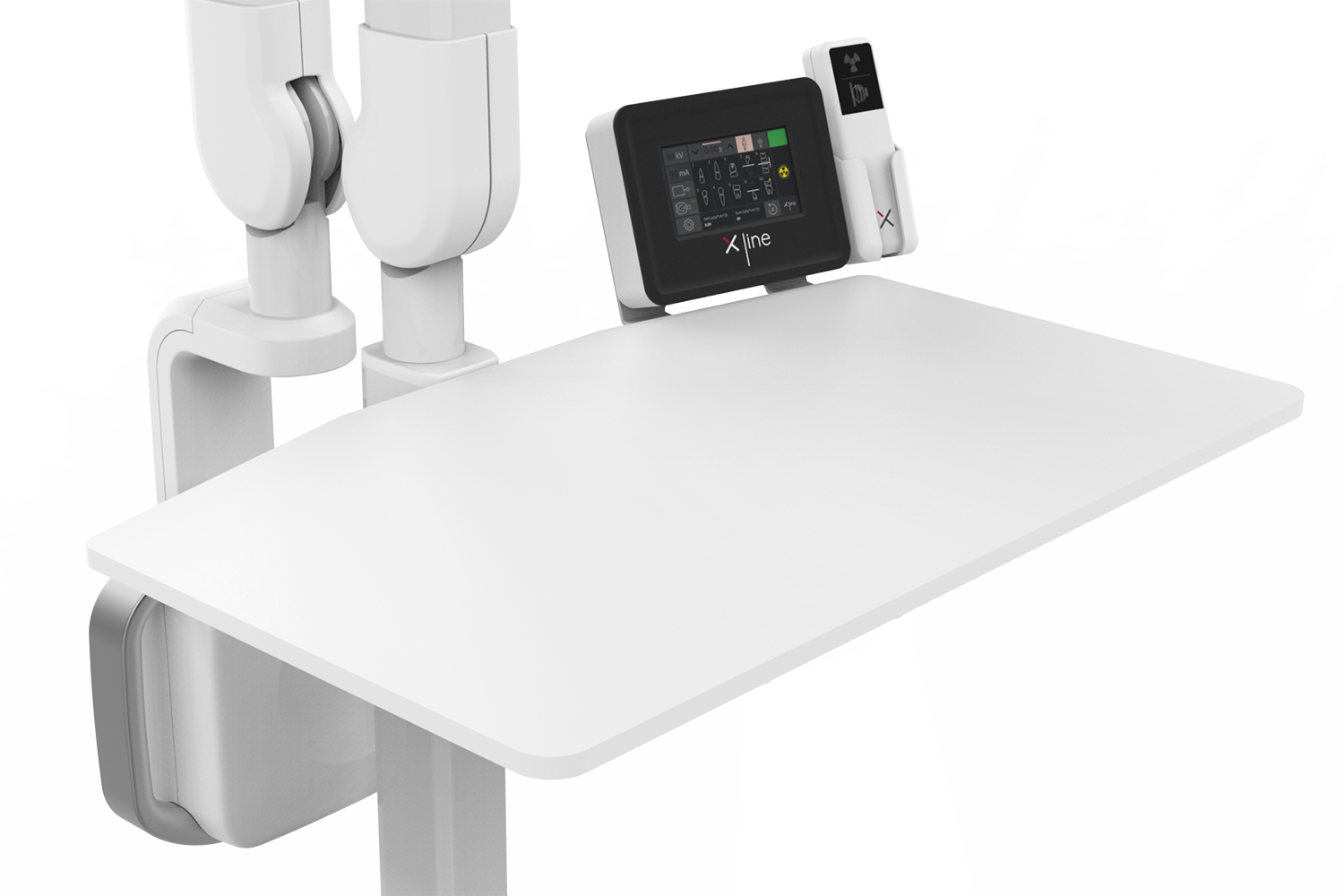

Mobile version available in the standard configuration or with a practical laptop support tray.
The touchscreen can be mounted on the left or on the right of the tray according to your needs.

Options

  • Choose among 4 different extension arm lengths to make your intraoral unit perfectly fit into your dental studio. You can select standard 30 cm, 60 cm or 80 cm and optional 100 cm arm.

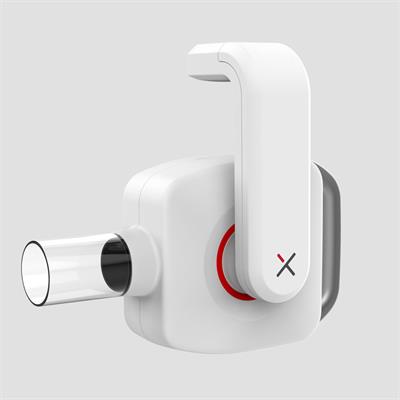

  • Xline’s rectangular beam limiting device (2x3cm or 3x4cm) permits significant dose reduction.

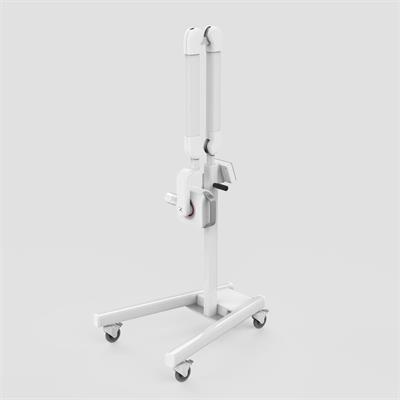

  • The mobile version is the ideal choice for dental clinics looking for maximum operational flexibility.
  • 20/21 cm standard or 30 cm optional collimator available.
  • Mobile version available in the standard configurationor with a practical laptop support tray.
  • Ready for the veterinary field.
Generator High Frequency (DC)
Focal Spot 0.4 (IEC 336/1997)
Tube voltage, current 60/65/70 kV (selectable), 7ma
Line voltage 90-264V, 50/60 Hz
Focus-skin distance Standard 20cm (collimator 30cm)
Patient Sizes Adult, Child
Preset programs 10
Exposure time 0,01 - 3.2 s
Wall Mount Extensions 30, 60, 80 and 100cm

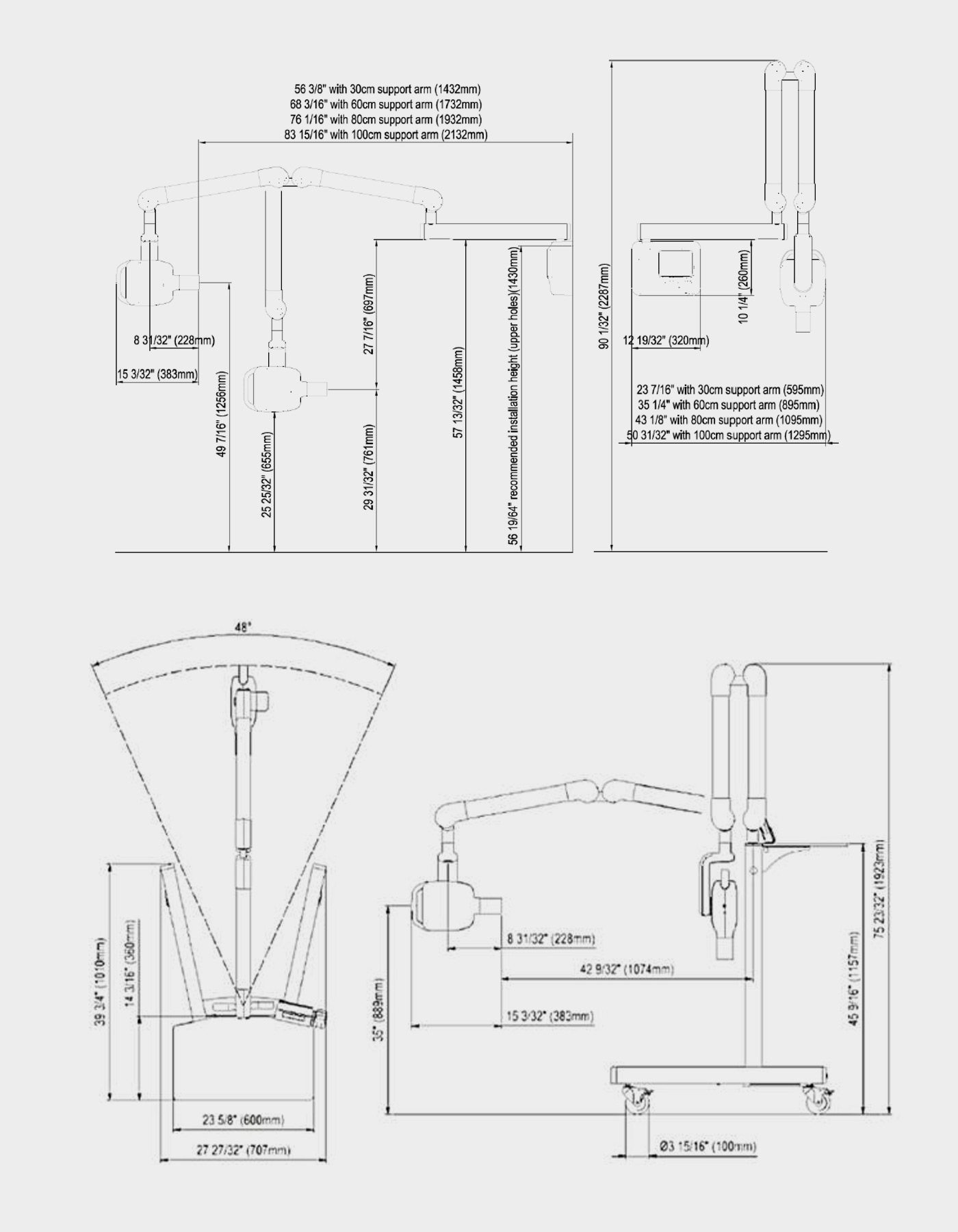

Tecnichal draw
